Superconductor-insulator transition
Atomic disorder in a metal can result in a quantum transition to an insulating state? What happens when the metal
is also a superconductor? Spatially resolved tunneling spectroscopy has revealed the spectral
signature of this transition in this paradoxical context.
Superconductivity relies on the formation of electron pairs, called Cooper pairs, which condense below Tc in a ground
state described by a delocalized electronic wave function, i.e. it extends through the whole sample. The presence of
moderate disorder does not fundamentally alter this mechanism, despite scattering effects arising from impurities and
material defects. However, if the metal is strongly disordered, quantum interferences associated with the multiple
reflections on the defects result in the localization of the electron wave functions. The metallic state is thus
changed into an insulating state, a process called Anderson localization.
Superconductivity vs. localization
Physicists very soon understood that this quantum transition should affect the properties of superconducting
metals. It is indeed difficult to imagine that the macroscopic spatial extension associated with superconductivity
can coexist with the microscopic localization of the electrons. However, ... several theoretical studies predict that
Cooper pairs are less prone to localization than single electrons. As a consequence, some strongly disordered compounds
could still exhibit superconductivity and shift to an insulating state only for a higher critical disorder, when Cooper
pairs would also localize. Do these Cooper pairs exist for real or only in the wild imagination of some theoreticians?
To settle this point, let's observe superconductivity … locally!
Tunneling spectroscopy to the rescue
The differential conductance between the scanning tunneling electron microscope (STM) tip and the sample surface is proportional
to the local density of electronic states. This measurement therefore probes the energy gap of a superconductor in
different locations on the surface. Usually, peaks, called coherence peaks, are observed on each side of the gap.
We have discovered though that in a strongly disordered superconductor close to the insulating state, amorphous
indium oxide, the intensity of the coherence peaks strongly varies with the probed region on the nanometer scale,

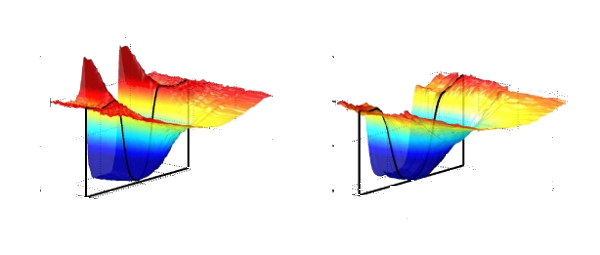

and that in numerous spectra obtained in the most disordered samples, the peaks were simply absent. The figure shows
two thermal dependencies on the density of states for two different samples. In the less disordered sample, the majority
of the spectra is similar to the left-hand side panel drawing. For the more disordered one, the right-hand side panel is
observed almost everywhere.
Based on systematic statistical studies, we have observed a proliferation of peak-less spectra when disorder increases. The disappearance
of the coherence peaks is thus correlated to the onset of an insulating state. Numerical simulations and recent theoretical works have confirmed this interpretation.
Hundred-year old electron pairs. In 2011, we celebrated the centenary of the discovery of superconductivity, this dramatic property which
enables the dissipation-less flow of electrons through some metals when they are cooled below a critical temperature Tc. The rigorously vanishing electrical
resistivity was theoretically explained only in 1957 thanks to studies by Bardeen, Cooper and Schrieffer (BCS) who were awarded the Nobel Prize in physics for these results.
These researchers realized that electrons need to form pairs in order to superconduct. The formation of pairs, called Cooper pairs, coincides with the disappearance of single
electron states and with the opening of a forbidden gap in the density of states. This gap, of width 2 Δ, is characterized by coherence peaks at energies ± Δ.
Read more in
B. Sacépé et al. Nature Physics 7, 239 (2011)
Pseudogap in conventional superconductors
A collaboration with Institut Néel (Grenoble) and Weizmann Institute of Science (Israel)
In most superconductors, the transition to the superconducting state is driven by the binding of electrons into Cooper pairs. The condensation of these pairs
into a single, phase-coherent, quantum state takes place at the same time as their formation at the transition temperature, Tc. A different scenario occurs in some disordered,
amorphous, superconductors: instead of a pairing-driven transition, incoherent Cooper pairs first preform above Tc, causing the opening of a pseudogap, and then, at Tc,
condense into the phase-coherent superconducting state. Such a two-step scenario implies the existence of a new energy scale, Δc, driving the collective
superconducting transition of the preformed pairs.
We have unveiled this energy scale by means of Andreev spectroscopy in superconducting thin films of amorphous indium oxide (See the image).
We have observed two Andreev conductance peaks at ±Δc that develop only below Tc and for highly disordered films on the verge of the transition to insulator. Our findings demonstrate that
amorphous superconducting films provide prototypical disordered quantum systems to explore the collective superfluid transition of preformed Cooper pairs.
Pseudogap in conventional superconductors
A collaboration with Institute of semiconductor Physics (Russia), Argonne National Laboratory (USA) and IMEC (Belgium)
The existence of a gap in the density of states of superconductors has been very well verified in numerous superconductors untill the discovery of
high temperature superconductors (HTS). In those materials, a strong dip in the density of states exists up to a temperature T* much higher than the critical
temperature Tc. This anomaly is called a pseudogap and has been long thought to be the key to understanding High Temperature Superconductivity. There are
two competing explanations for this feature. In the first scenario, electrons start pairing above Tc in a state precursor of superconductivity as
suggested by the fact that the transition from pseudo to real gap is continuous. In the second scenario, the pseudogap reflects a state competing with
supercondctivity. This is suggested by the observation that the more resistive the sample is in the normal state, the lower Tc and the higher T*.
This suggests to investigate conventionnal superconductors which normal state is highly resistive as we have done.

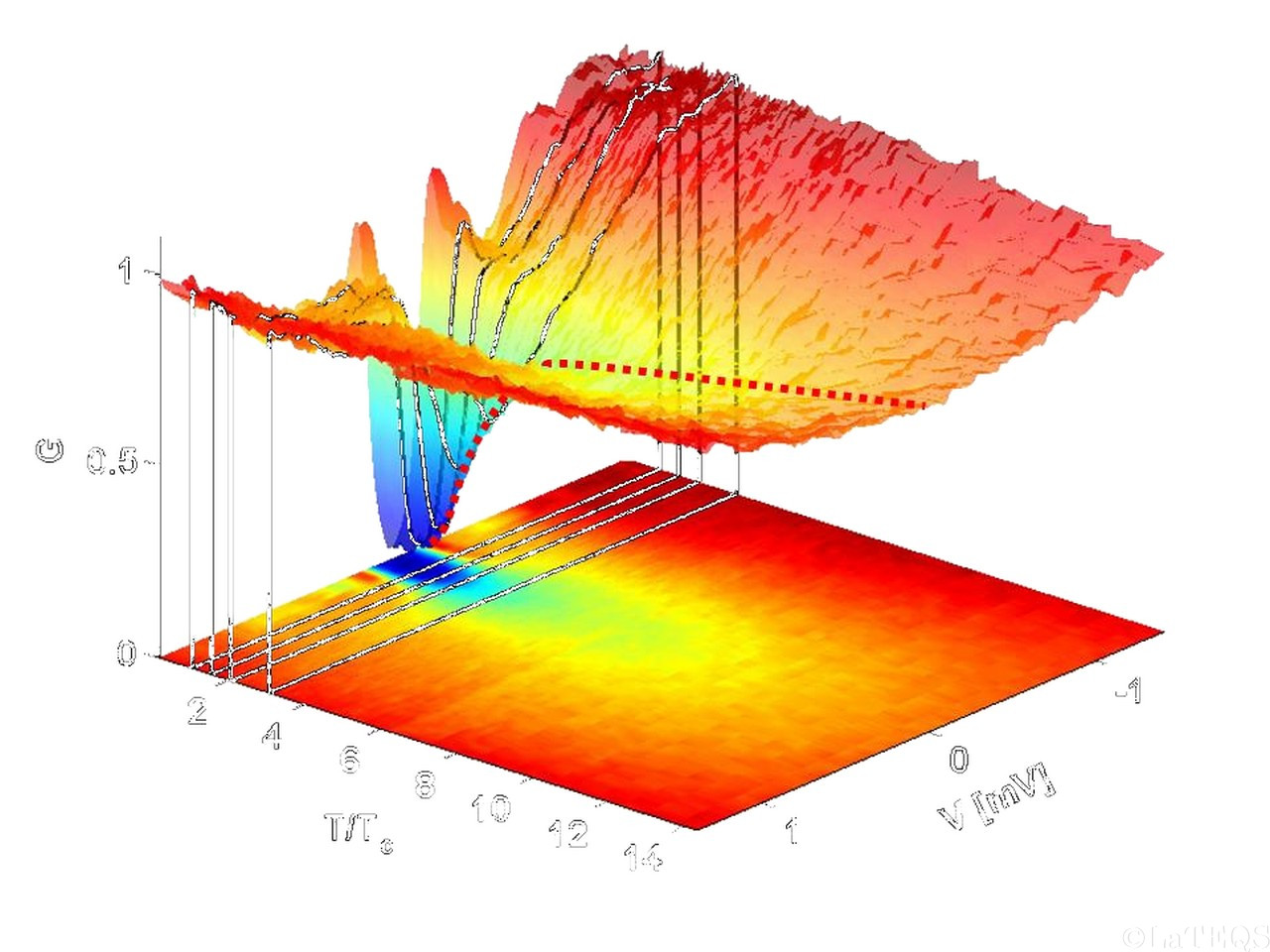

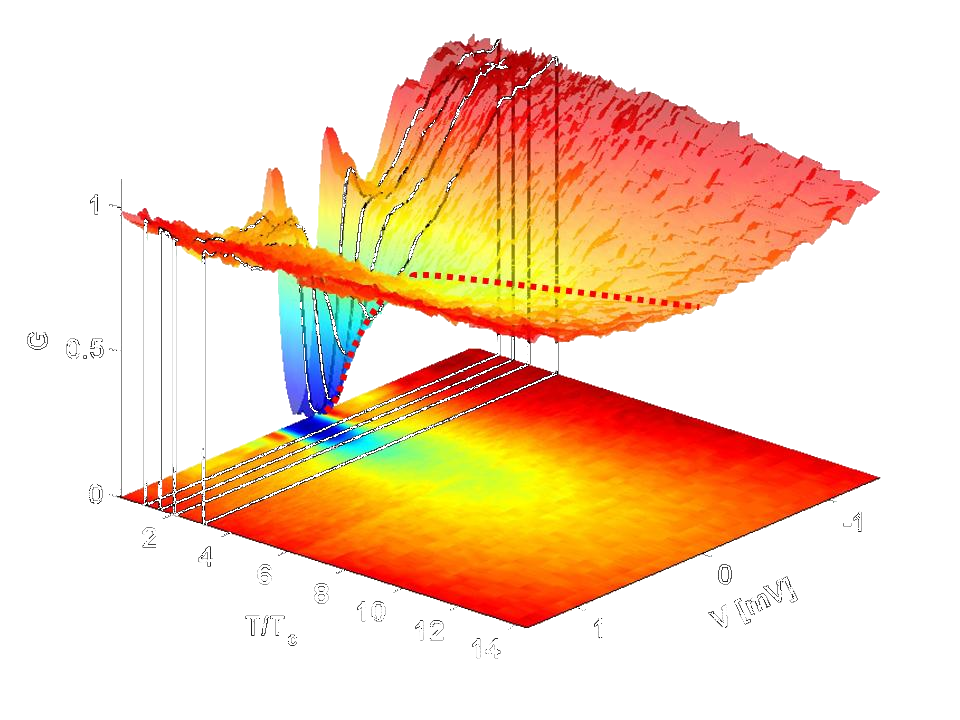

We have measured TiN thin films which can show a pseudo gap up to 14×Tc. These are the first conventional superconductors with a pseudogap!
In our samples, the pseudogap originates from the formation of Cooper pairs above Tc. This is evidenced by the linear in ln(T/Tc) temperature dependence
of the conductance at zero bias. However, unfortunatelly, this does not mean that the 20 years long mistery of HTS is resolved. Indeed in HTSs the
order parameter has a different symetry leading to a much more complex behaviour.
